Installation and Troubleshooting Guide for HDBaseT Extenders

Professional Tips for Installers & System Integrators

OREI works closely with system integrators worldwide, and HDBaseT installation issues are among the most common support cases. Our support team has compiled this guide to help you quickly identify root causes and apply the right fix.

‍If you prefer a quick on-site reference before going through the full guide, a downloadable checklist is available below—simply complete a short questionnaire to access the file.

‍‍HDBaseT Technology

HDBaseT is a long-distance transmission technology that carries video, audio, controls, Ethernet, and power over a single CAT cable.

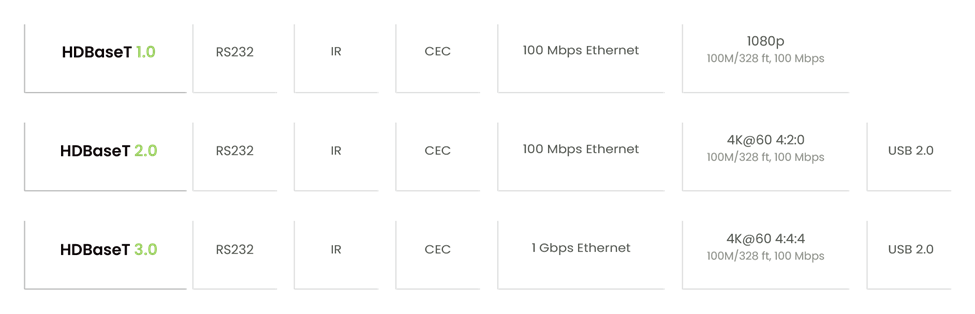

HDBaseT Versions

• HDBaseT 1.0 (VS100): Supports digital video/audio, RS232, IR, CEC, and PoH. (VS010 models do not support Ethernet.)
• HDBaseT 2.0 (VS2000): Adds USB 2.0 transmission.
• HDBaseT 3.0 (VS3000): Adds 4K60 support and 1Gbps Ethernet.

Higher HDBaseT versions are backward compatible, meaning they support the shared features of earlier versions. However, lower-version devices cannot gain newer features introduced in later HDBaseT specifications.

Before deploying an HDBaseT extender, it is essential to confirm its technical specifications, such as IR support, USB capability, and whether single-side power delivery is supported.

Supported OREI Product Series

This guide applies to all OREI HDBaseT extender models, including: Matrix Extenders‍

Installation Notes for HDBaseT Extenders

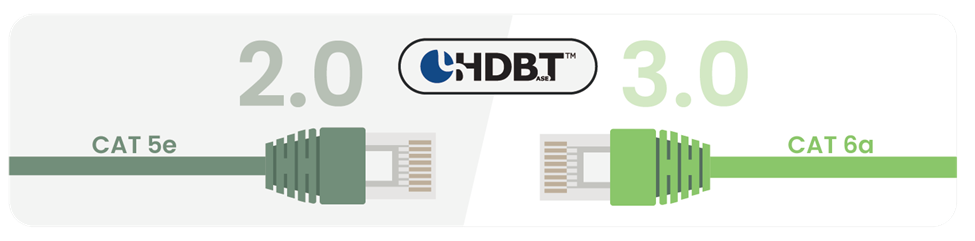

1. Use the Correct Cable Category

• HDBaseT 2.0: Use CAT5e or higher
• HDBaseT 3.0: Use CAT6a or higher (recommended)

HDBaseT carries uncompressed, zero-latency video and control, so link stability depends heavily on cable quality—especially at 4K60 and longer distances. For best results, use HDBaseT Alliance–recommended / certified cabling (or equivalent high-quality solid-copper installation cable) to help ensure stable transmission over long runs.

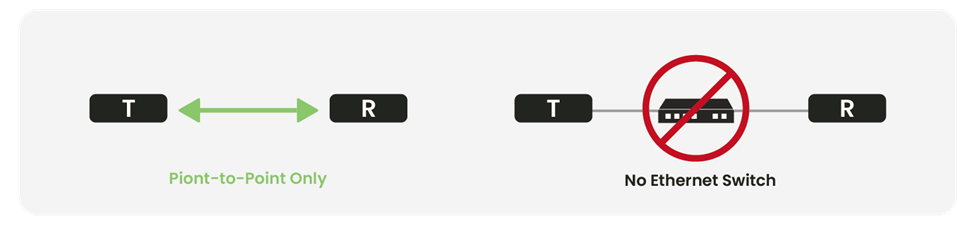

‍2. HDBaseT Cannot Be Routed Through a Network Switch

HDBaseT does not use TCP/IP.

It uses a 10G physical layer to transport uncompressed video, so it cannot pass through switches, routers, or network distribution devices.

For switching/distribution, use an HDMI matrix or AV-over-IP system.

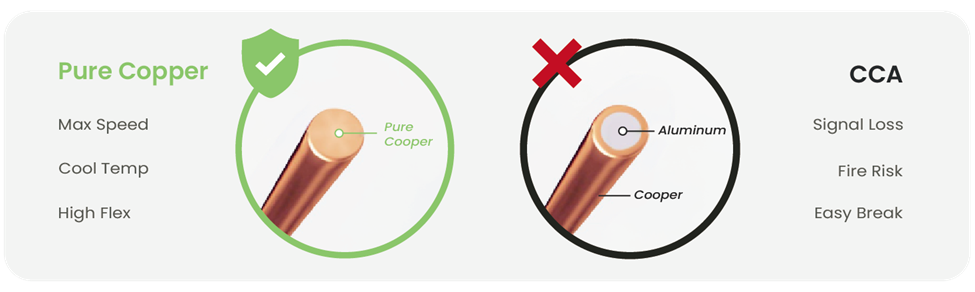

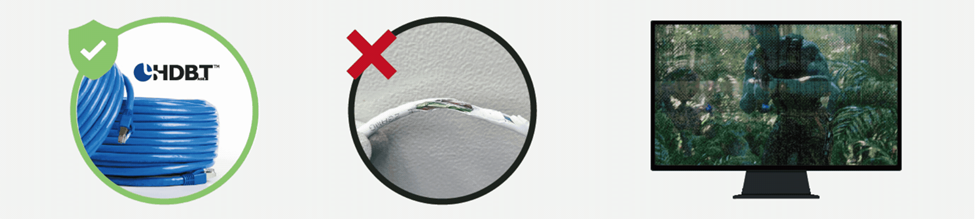

‍3. Avoid Copper-Clad Aluminum (CCA) Cables and Interference

Non-pure-copper CAT cables introduce:

• Higher signal loss
• Susceptibility to interference
• Unstable 4K transmission

HDBaseT transmits uncompressed, zero-latency audio and video, which requires high bandwidth and is more susceptible to interference, especially when CAT cables are installed in tight conduits or near power lines. This may cause image flicker, black screens, or video noise.

If re-cabling is not possible, consider switching to OREI’s Over-IP Series (1G-based compressed extenders, supporting 1080p, 4K@30Hz, and 4K@60Hz).

‍Common Issues, Causes & Solutions

HDBaseT problems usually fall into four major categories:

• Source devices
• Display devices
• Transmission devices (TX/RX)
• Cables (HDMI / CAT)

Below are the most common real-world cases and how to fix them.

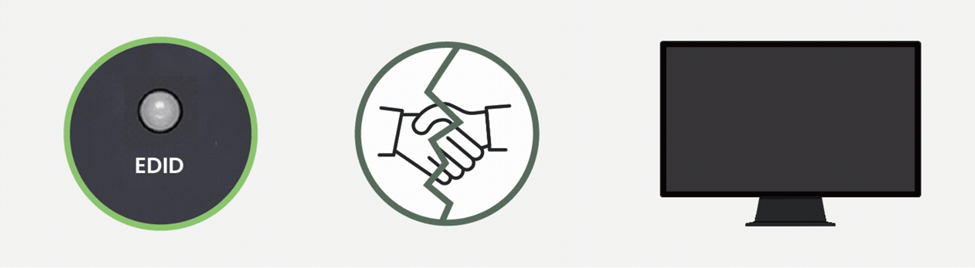

‍1. EDID Handshake Failure

This issue commonly occurs when an HDBaseT extender shows no signal or a black screen, even though the TX/RX indicators appear normal.

‍Symptoms

LEDs appear normal, but the screen stays black

Cause

EDID (Extended Display Identification Data) handshake breaks between the source, extender, and display.

Solutions

• Perform a power cycle in this order: Display → RX → TX → Source‍
• If still unstable, add an EDID emulator to lock the resolution.

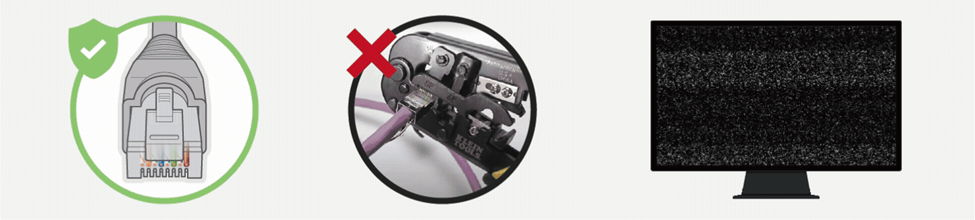

2. Poor RJ45 Termination (Pass-Through Type)

Unstable or intermittent HDBaseT signals are often caused by improper RJ45 termination, especially when pass-through connectors are used.

‍Symptoms

• Intermittent dropouts
• Frame freezing at 4K60
• Signal degradation over longer runs

Cause

Pass-Through RJ45 connectors split twisted-pair wires too far apart and rely on thin cutting blades, causing:

• Excessive pair untwist → crosstalk
• Weak pin contact → impedance spikes

HDBaseT officially prohibits the use of pass-through connectors, as they can cause 4K signal instability or failure.

Solutions

• Use standard (non pass-through) RJ45 connectors.
• Keep twisted pairs intact up to the pin base (<1 cm).
• Use factory-terminated pure-copper cables such as CommScope.

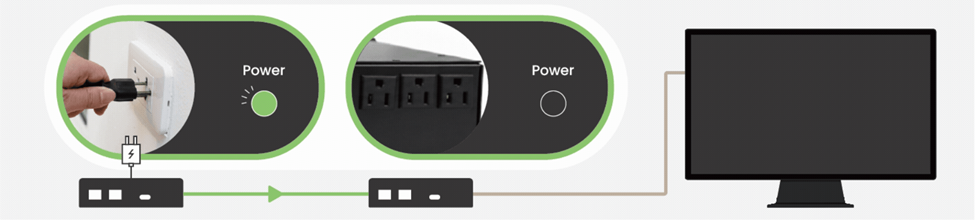

‍3. HPD (Hot Plug Detect) Interruption

HPD-related issues typically appear when an HDBaseT system shows no input at startup due to unsynchronized power-on behavior.

‍Symptoms

• Black screen at startup
• TX/RX blinking red LED
• Source device displays “No Input”
• Source automatically switches to another HDMI input

Cause

The HPD (Hot Plug Detect) handshake breaks due to unsynchronized power-on behavior between the source, extender, and display.

Solutions

• Plug all devices into a single unified power control.
• Ensure simultaneous power on/off for source, extender, and display.

‍4. Bandwidth Overload or Signal Attenuation

HDBaseT video instability usually occurs when 4K signals exceed cable or distance limitations, resulting in flicker, noise, or signal dropouts.

‍Symptoms

• Snow, white flashes, or sparkles
• Dropped frames
• Audio dropouts
• Transmission distance significantly below spec

Cause

HDBaseT squeezes 18Gbps uncompressed 4K into a 10Gbps physical channel using compression & error correction.

Any weak link results in failure:

• Cable not meeting HDBaseT spec
• Over-length runs (especially 4K60 4:4:4)
• Thin wire gauges (AWG 25+), CCA cables
• Pair untwist >1 cm
• Electromagnetic interference

Solutions

• Check whether your cable is compliant using HDBaseT’s official cable list.
• Refer to cable vendor’s performance charts for distance ratings.
• Lower resolution (e.g., from 4K60 → 4K30).
• Keep CAT cable 30 cm away from AC power lines.
• Use STP cabling for noisy environments.

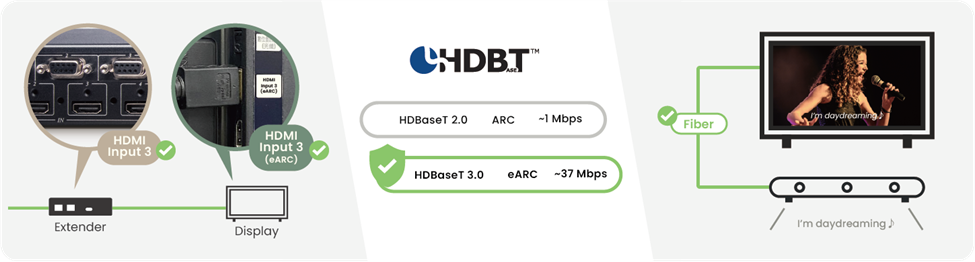

‍5. ARC/eARC Configuration Issues

ARC or eARC audio issues over HDBaseT are commonly related to HDMI port assignment, bandwidth sharing, or device compatibility.

‍Symptoms

• No audio from TV apps (Netflix, YouTube)
• Only stereo audio; no Dolby Atmos
• Audio cuts in/out

Causes

• ARC port mismatch (TV ARC often fixed to HDMI 3).
• CEC is disabled, preventing ARC initialization.
• Cable & bandwidth:
  • Although ARC requires only about 1 Mbps, it shares the same 100 Mbps Ethernet channel with 4K video; when video bandwidth is saturated, ARC audio packets may be dropped.
  • Poor-quality UTP cables combined with power-line interference can cause ARC packet errors, preventing the AV receiver from detecting Dolby audio headers and forcing audio to fall back to stereo.
• AV receiver incompatible with ARC:
  • Some older AV receivers only support SPDIF and do not support HDMI ARC, so ARC audio cannot be received even if the TV outputs it correctly.
  • HDBaseT does not natively define ARC support; ARC/eARC behavior depends on vendor-specific implementations.

Solutions

• Enable CEC and select the correct ARC HDMI port on the TV.
• Upgrade to HDBaseT 3.0 for eARC support.
• Use optical audio return when HDMI ARC is unreliable.

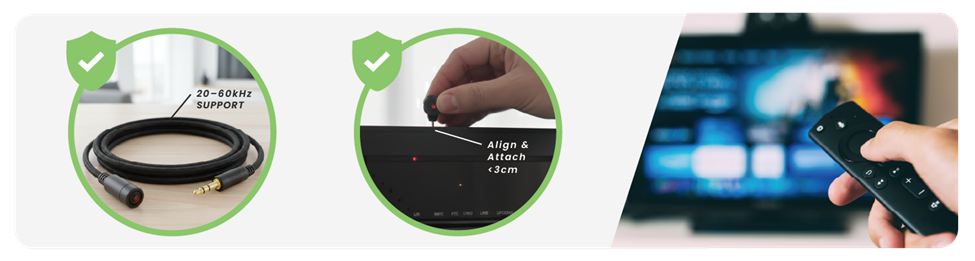

‍‍6. IR Frequency or Alignment Problems

IR control problems typically occur when remote commands do not respond or respond intermittently through an HDBaseT extender.

‍Symptoms

• Delayed response or no response at all
• IR LED blinks, but the device does not react

Cause

• IR frequency mismatch: Device uses 38kHz, but IR cable only supports 56kHz (or vice versa)
• Narrow-band IR cables only support a single frequency.
• IR emitter not aligned with the equipment’s IR window.

Solutions

• Align IR emitter directly over the IR window (<3 cm).
• Use wide-band IR cables (20–60kHz range).

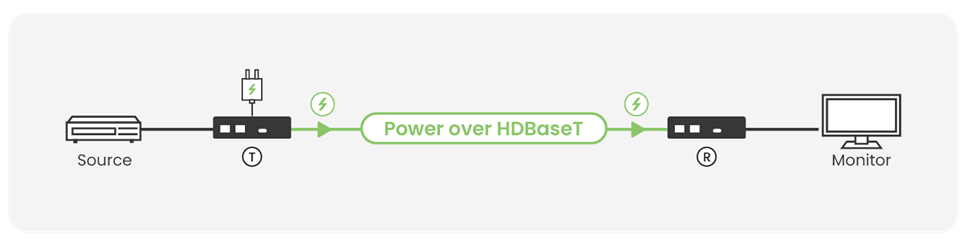

‍7. PoH (Power over HDBaseT) Voltage Drop

Power issues arise when the HDBaseT receiver fails to power on or requires external power due to voltage drop over long CAT cables.

‍Symptoms

• TX LED on, RX LED off
• RX only works with external power
• Random shutdowns

Cause

PoH (Power over HDBaseT) delivers power from the TX to the RX over a CAT cable, and the RX then supplies power to the internal chipset; any condition such as poor cable quality, excessive distance, or contaminated connectors can result in voltage drop.

• High cable resistance (thin wire or CCA):
• Excessive cable resistance caused by thin conductors (AWG 25 or higher) or copper-clad aluminum cables can introduce 15–20 Ω per 100 m, significantly reducing current and leaving only 20 V or even 10 V at the RX.
• Long-distance runs:
  • When cable length exceeds 50 m, the accumulated round-trip resistance can exceed 10 Ω, causing the voltage to drop below 36 V, which is near the RX startup threshold.
• Loose termination or cable oxidation:
  • Cable aging or oxidation, such as corroded terminals or loose connectors, can sharply increase resistance and prevent the RX power indicator from turning on.

Solutions

• Verify whether the product supports PoH or PoC power delivery.
• Confirm TX output power meets the specified rating.
• When the cable length is excessive, use local power at the receiver side.
• Replace the cable with AWG 23 pure-copper CAT6a and ensure proper termination.

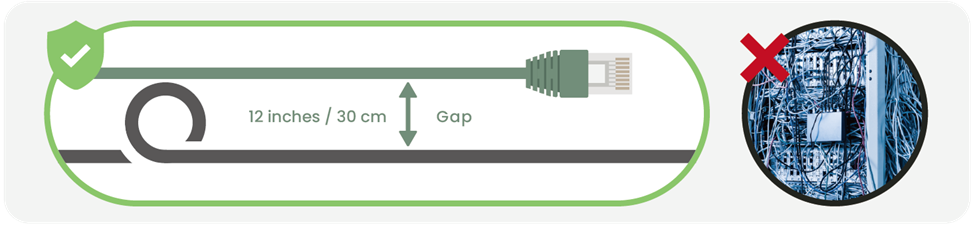

‍8. Interference from Adjacent Power Lines

HDBaseT signal instability may occur when CAT cables are routed too close to power lines, causing electromagnetic interference.

‍Symptoms

• Random black screens
• Unstable connection

Cause

Network cable running parallel to power cables causes EMI, especially with PoC-enabled extenders.

Solutions

• Keep CAT cable at least 30 cm away from power lines.
• If re-cabling is not possible, consider switching to a compressed extender (e.g., OREI HE03 series).

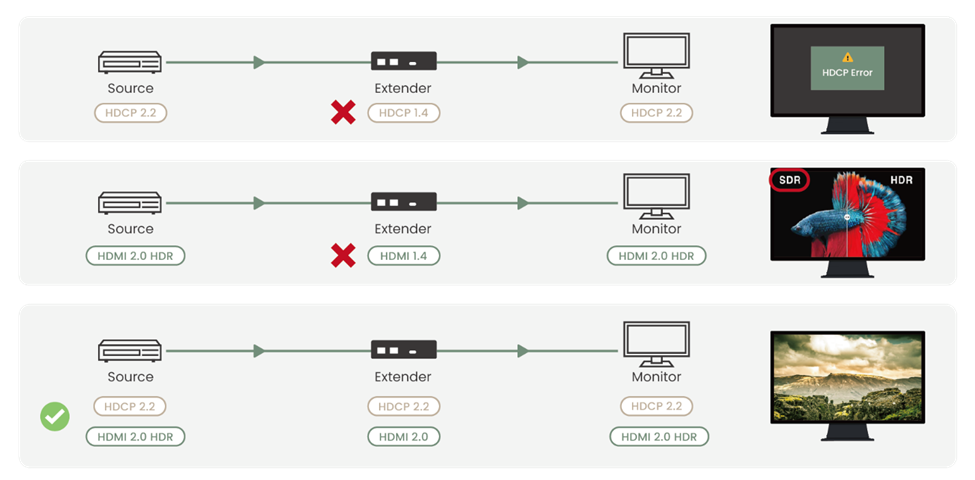

9. HDCP / HDMI Version Incompatibility

HDCP or HDMI compatibility issues often result in a black screen or HDR fallback when devices do not share the same protection standards.

‍Symptoms

• Black screen
• HDR downgraded to SDR
• “HDCP Error” messages
• Long delay before image appears

Cause

• HDCP version mismatch between source and display
• Some displays are locked to HDCP 2.2, while lower-cost extenders support only HDCP 1.4, causing the HDCP handshake to fail.
• HDMI version downgrade caused by extender limitations
• HDMI 2.0 HDR source → HDMI 1.4 extender: the system refuses to show the image
• Incorrect EDID information returned from the display

Solutions

• Verify HDCP version on source, cable, and display.
• Avoid using HDMI 1.4 extenders for HDR systems.

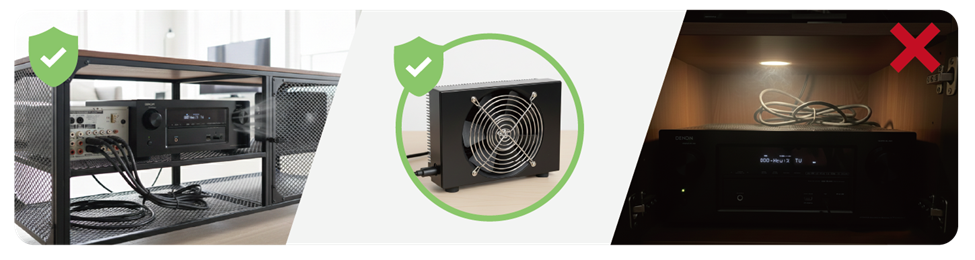

‍‍10. Overheating & Thermal Protection Trigger

HDBaseT extenders may stop working after long operation when excessive heat triggers internal thermal protection.

Symptoms

• Device shuts down after hours of use
• Image drops intermittently
• TX/RX casing becomes very hot (>65°C)
• LEDs flashing red

Cause

HDBaseT 2.0/3.0 extenders work at high bandwidth and can generate significant heat:

• Poor ventilation in racks
• Long-time 4K60 operation
• Enclosures with limited airflow

Solutions

• Add cooling fans or heat sinks.
• Improve ventilation in rack environments.
• Schedule periodic system reboots.
